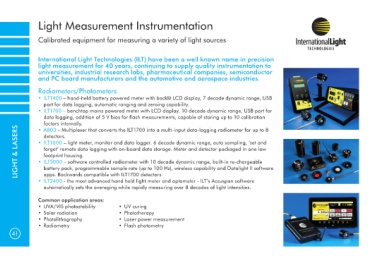

Page 42 - LOT Quantum Design Product guide

Light Measurement Instrumentation

Calibrated equipment for measuring a variety of light sources

International Light Technologies (ILT) have been a well known name in precision
light measurement for 40 years, continuing to supply quality instrumentation to
universities, industrial research labs, pharmaceutical companies, semiconductor
and PC board manufacturers and the automotive and aerospace industries.

Radiometers/Photometers
• ILT1400 – hand-held battery powered meter with backlit LCD display, 7 decade dynamic range, USB
port for data logging, automatic ranging and zeroing capability.
• ILT1700 – benchtop mains powered meter with LCD display. 10 decade dynamic range, USB port for
data logging, addition of 5 V bias for flash measurements, capable of storing up to 10 calibration
factors internally.
LIGHT & LASERS • ILT1000 – light meter, monitor and data logger. 6 decade dynamic range, auto sampling, ‘set and
• A803 – Multiplexer that converts the ILT1700 into a multi-input data-logging radiometer for up to 8
detectors.
forget’ remote data logging with on-board data storage. Meter and detector packaged in one low
footprint housing.
• ILT5000 – software controlled radiometer with 10 decade dynamic range, built-in re-chargeable
battery pack, programmable sample rate (up to 100 Hz), wireless capability and Datalight II software
apps. Backwards compatible with ILT1700 detectors.
• ILT2400 - the most advanced hand held light meter and optometer - ILT’s Accuspan software
automatically sets the averaging while rapidly measuring over 8 decades of light intensities.
Common application areas:
• UVA/VIS photostability • UV curing
• Solar radiation • Phototherapy
• Photolithography • Laser power measurement
• Radiometry • Flash photometry
41
