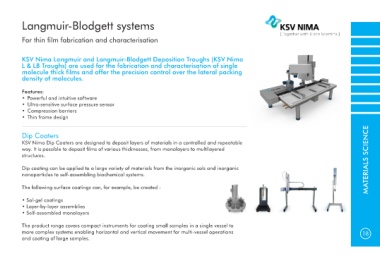

Page 19 - LOT Quantum Design Product guide

Langmuir-Blodgett systems

For thin film fabrication and characterisation

KSV Nima Langmuir and Langmuir-Blodgett Deposition Troughs (KSV Nima
L & LB Troughs) are used for the fabrication and characterisation of single
molecule thick films and offer the precision control over the lateral packing
density of molecules.

Features:
• Powerful and intuitive software
• Ultra-sensitive surface pressure sensor
• Compression barriers
• Thin frame design

Dip Coaters
KSV Nima Dip Coaters are designed to deposit layers of materials in a controlled and repeatable
way. It is possible to deposit films of various thicknesses, from monolayers to multilayered
structures. MATERIALS SCIENCE
Dip coating can be applied to a large variety of materials from the inorganic sols and inorganic
nanoparticles to self-assembling biochemical systems.

The following surface coatings can, for example, be created :
• Sol-gel coatings
• Layer-by-layer assemblies
• Self-assembled monolayers
The product range covers compact instruments for coating small samples in a single vessel to
more complex systems enabling horizontal and vertical movement for multi-vessel operations 18
and coating of large samples.
