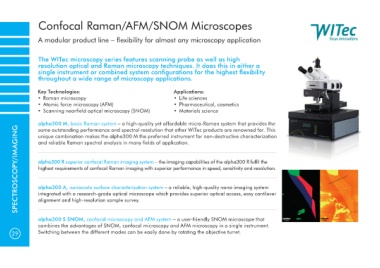

Page 30 - LOT Quantum Design Product guide

Confocal Raman/AFM/SNOM Microscopes

A modular product line – flexibility for almost any microscopy application

The WITec microscopy series features scanning probe as well as high
resolution optical and Raman microscopy techniques. It does this in either a
single instrument or combined system configurations for the highest flexibility
throughout a wide range of microscopy applications.

Key Technologies: Applications:
• Raman microscopy • Life sciences
• Atomic force microscopy (AFM) • Pharmaceutical, cosmetics
• Scanning nearfield optical microscopy (SNOM) • Materials science
alpha300 M, basic Raman system – a high-quality yet affordable micro-Raman system that provides the
SPECTROSCOPY/IMAGING alpha300 R superior confocal Raman imaging system – the imaging capabilities of the alpha300 R fulfil the
same outstanding performance and spectral resolution that other WITec products are renowned for. This
unique combination makes the alpha300 M the preferred instrument for non-destructive characterization
and reliable Raman spectral analysis in many fields of application.

highest requirements of confocal Raman imaging with superior performance in speed, sensitivity and resolution.

alpha300 A, nanoscale surface characterization system – a reliable, high-quality nano-imaging system
integrated with a research-grade optical microscope which provides superior optical access, easy cantilever
alignment and high-resolution sample survey.

alpha300 S SNOM, confocal microscopy and AFM system – a user-friendly SNOM microscope that
combines the advantages of SNOM, confocal microscopy and AFM microscopy in a single instrument.
29 Switching between the different modes can be easily done by rotating the objective turret.
