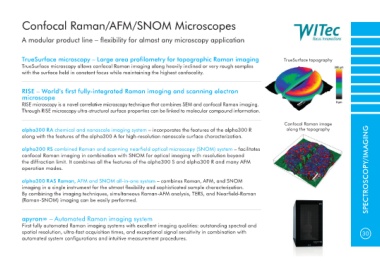

Page 31 - LOT Quantum Design Product guide

Confocal Raman/AFM/SNOM Microscopes

A modular product line – flexibility for almost any microscopy application

TrueSurface microscopy – Large area profilometry for topographic Raman imaging TrueSurface topography
TrueSurface microscopy allows confocal Raman imaging along heavily inclined or very rough samples
with the surface held in constant focus while maintaining the highest confocality.

RISE – World’s first fully-integrated Raman imaging and scanning electron
microscope
RISE microscopy is a novel correlative microscopy technique that combines SEM and confocal Raman imaging.
Through RISE microscopy ultra-structural surface properties can be linked to molecular compound information.
Confocal Raman image
alpha300 RA chemical and nanoscale imaging system – incorporates the features of the alpha300 R along the topography
along with the features of the alpha300 A for high-resolution nanoscale surface characterization.
alpha300 RS combined Raman and scanning nearfield optical microscopy (SNOM) system – facilitates
confocal Raman imaging in combination with SNOM for optical imaging with resolution beyond
the diffraction limit. It combines all the features of the alpha300 S and alpha300 R and many AFM
operation modes. SPECTROSCOPY/IMAGING
alpha300 RAS Raman, AFM and SNOM all-in-one system – combines Raman, AFM, and SNOM
imaging in a single instrument for the utmost flexibility and sophisticated sample characterization.
By combining the imaging techniques, simultaneous Raman-AFM analysis, TERS, and Nearfield-Raman
(Raman-SNOM) imaging can be easily performed.

apyron∞ – Automated Raman imaging system
First fully automated Raman imaging systems with excellent imaging qualities: outstanding spectral and
spatial resolution, ultra-fast acquisition times, and exceptional signal sensitivity in combination with 30
automated system configurations and intuitive measurement procedures.
